Description

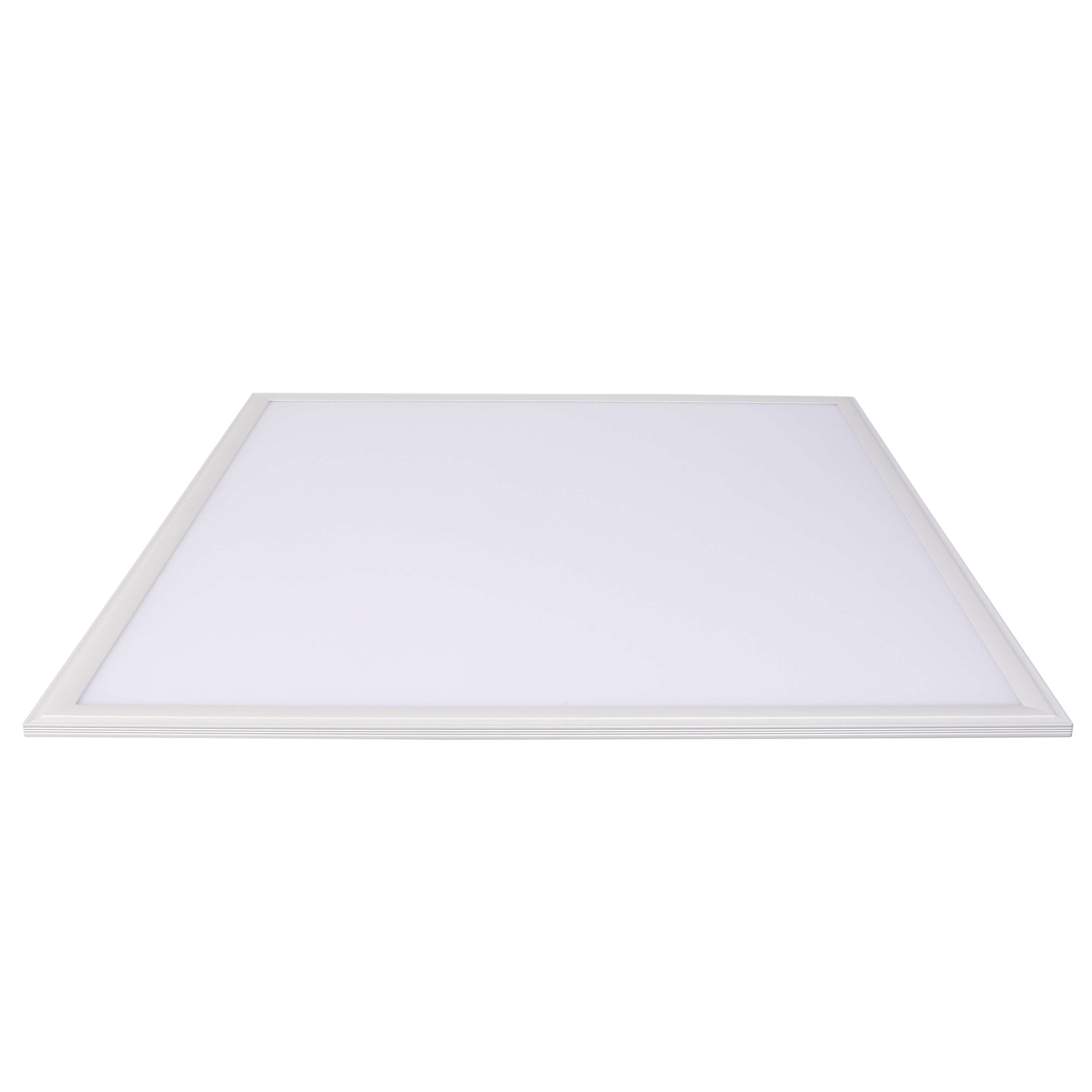

Typically used to replace traditional fluorescent lay in fixture. The GRLP series is a next generation family of edge lite led flat panel fixtures designed to lay in drop ceilings in offices, schools, and healthcare application. The flat panels are fully dimmable, compatible with building controls, motion sensors, and daylight harvesting systems. The design of the GRLP series panels produces an even and consistent shadow-less light. The LED’s enable long life, high lumen maintenance, high CRI, low maintenance, and constructed without hazardous materials.
Specs
| Title | Description |
|---|---|
| Models: | GRLP-24-50-MVD-835 |
| Description: | Recessed LED Panel, 2×4, 50W LED Module, 120-277V, 3500K |
| UL/ETL (Standard, Location Ratting): | UL 1598 Damp Location, ETL Labeled |
| Dimmable: | Yes, 0-10v |
| Watts: | 50 |
| Delivered Lumens: | 6000 |
| Equivalent: | 100W CFL, 400W Incadescent |
| CRI: | 80+ |
| Length: | 23.8” |
| Width: | 47.8” |
| Depth: | 2.8” |
| Fixture Warranty: | 5 Years |
| Ballast Warranty: | 5 Years |
| Ballast /Driver Life (Hours): | N/A |
| Min Start Temp: | -18°F |
| Lamp Life: | 60,000 |
| Ballast /Driver Model: | N/A |
| Lamp/LED Module Type: | – |
